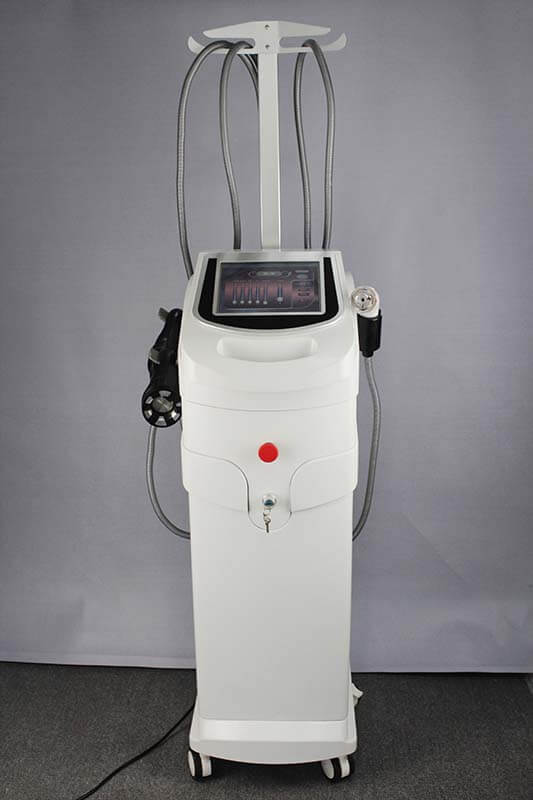

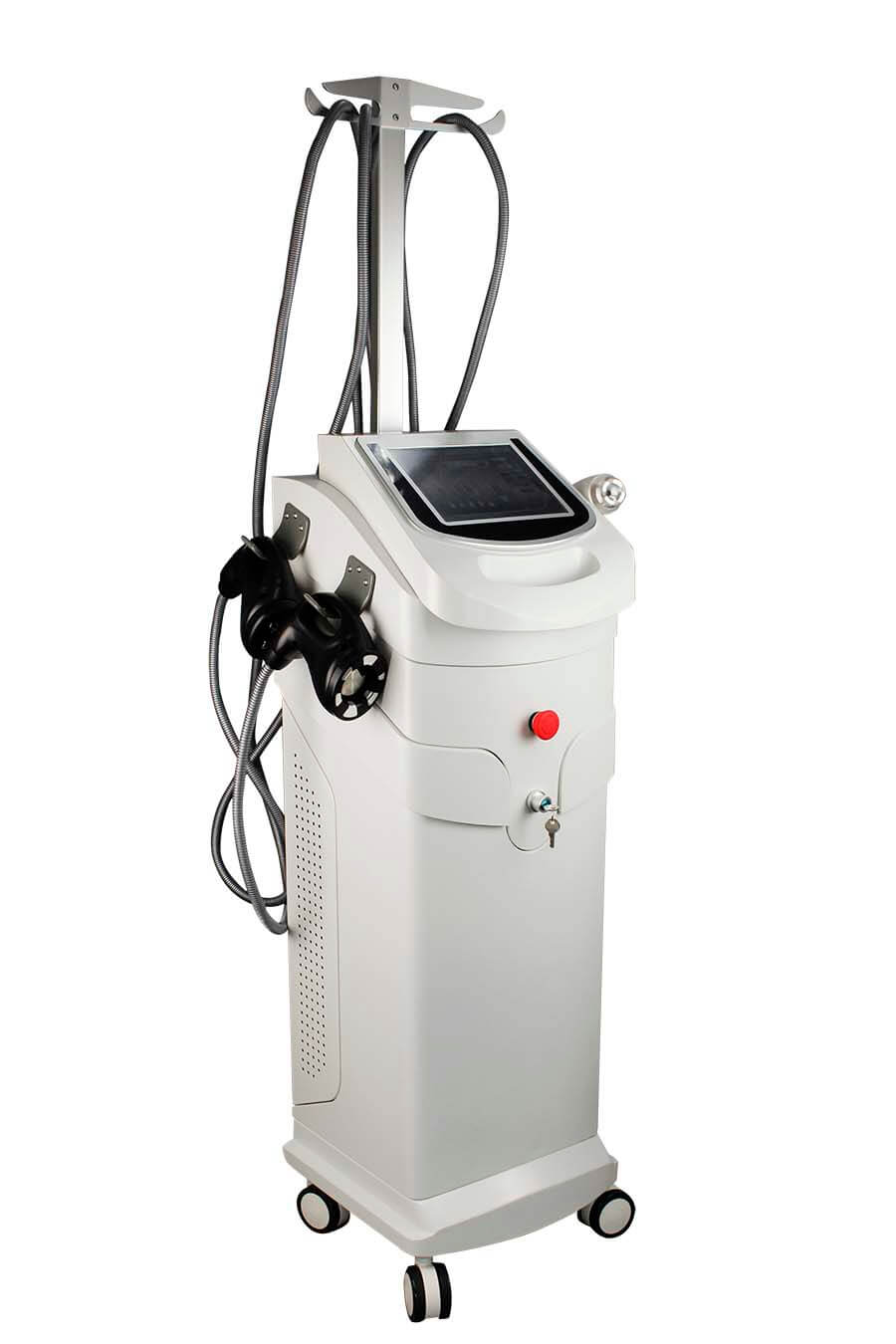

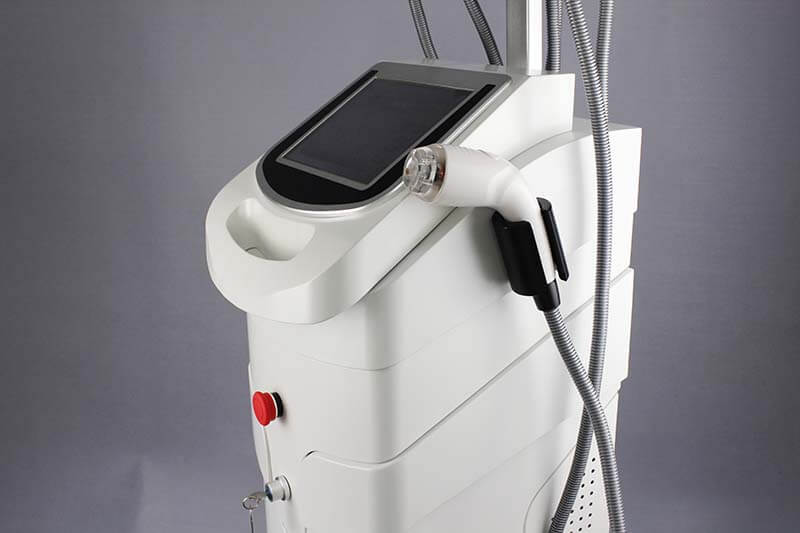

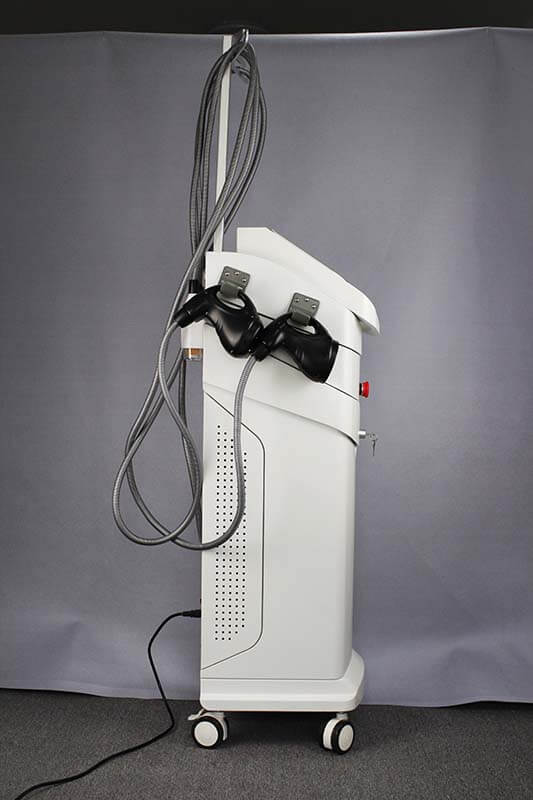

Ultraslim III™ | Professional Lipo Cavitation RF Body Contouring Machine
Ultraslim III™ is one of the most professional and powerful body sculpting machine on the market combining 6 advanced technologies in one single platform. It provides non-invasive and advanced facial and body care treatment such as fat reduction, body shaping, cellulite reduction, skin tightening, wrinkle reduction, facial rejuvenation etc.
Features
- Powerful cavitation RF machine for both face and body treatment.
- High efficacy for cellulite reduction, body contouring and skin tightening.
- Adopting the principle of Elos technology to maximum treatment result.
- Integrated 6 latest technologies in one platform.
- Innovative 5th generation cavitation technology enable safe and efficacy operation.
- Body applicator: Mechanical roller, Vacuum and RF for optimal result.
- Skinsense® technology ensure convenient and 100% safe treatment.
- High-end built quality and sate-of-the art design.
- Completely painless, comfortable and no downtime.
- Consistent , measurable and reproducible result.
Technologies
Advanced body contouring technologies
- Non-thermal ultrasonic cavitation
- Elos technology princilpe
- SkinSense technology:
- Innovative 5th generation cavitation
- Innovative Velashape body applicator
- Advanced facial applicator
- Product video
- Treatment video
Non-thermal Ultrasonic cavitation energy for effective fat reduction
What’s the non-thermal ultrasonic cavitation ? Lipo cavitation technology is non-thermal and non-invasive technology based on ultrasonic waves which generates empty micro bubbles in the liquid situated in the interior of the adipose tissue. Its repeated action causes the accumulation of these micro bubbles, which causes the fat cells to implode and collapse. The result is the destruction of the adipose cells transforming the fat nodules into liquid substances that the body removes in a natural way through the lymphatic system. The mechanism is cavitational mechanical destruction (empty micro bubbles ) of adipose tissue rather than thermal energy. It only generates little warm which is caused by ultrasound wave vibration.
Please click to learn more about the difference between ultrasound and cavitation.
Elos technology principle
Ultaslim III™ system adopt the advantages of the elos technology. Each applicator combines multiple synergistic energies. With multiple energy working simultaneously, it provides more comfortable, safer treatments and enhanced clinical efficacy.
SkinSense® technology: convenient operation and 100% safe treatment
Ultraslim III™ adopts advanced SkinSense technology to protect skin from any accidental operation. SkinSense technology enable energy is only released when skin is in full contact with the hand piece by detecting skin resistance automatically. This design prevents any skin burn caused by RF electrode shortage . Furthermore, there is no need to manually control energy release during treatment. Simply placing the applicator well on the treatment area makes the hand piece to work, and putting away the hand piece makes it stop working.The operation is easy, simple, safe and convenient.

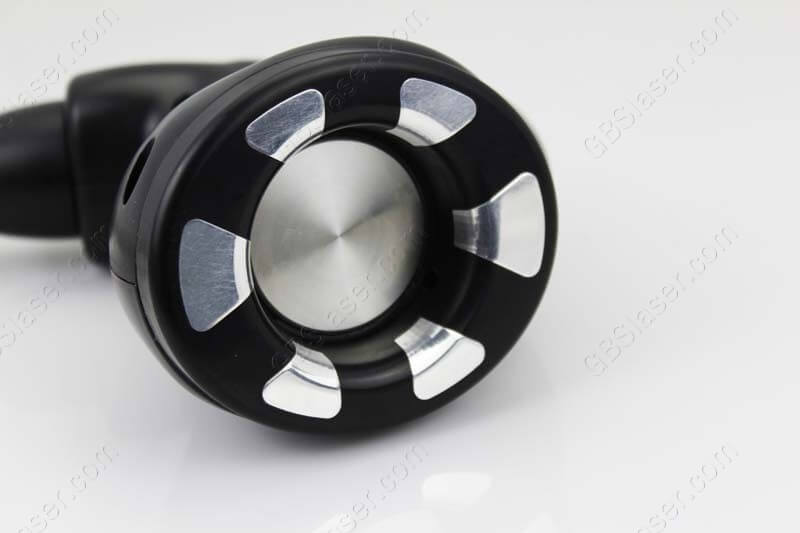

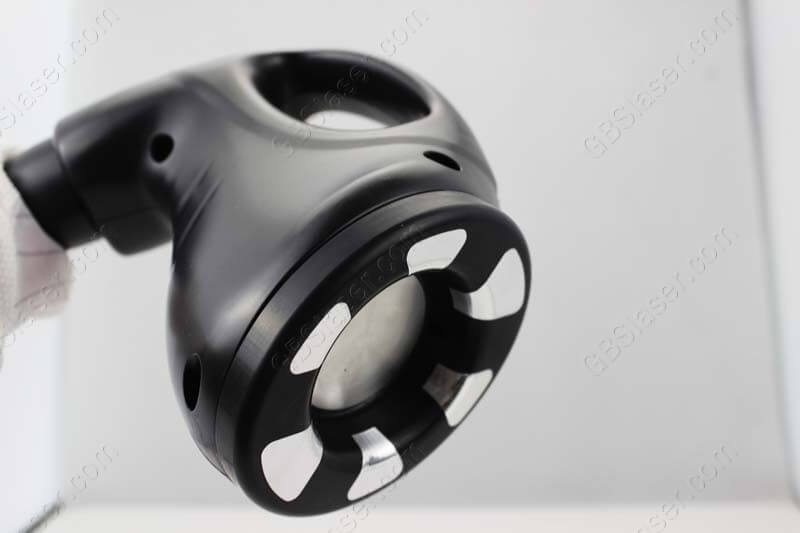

Innovative 5th generation cavitation technology: Cavitation+ Multi-polar RF+Vacuum Suction
- Precise and full cavitation control :
The only cavitation slimming machine in the world offering full control of cavitation energy: power, frequency and amplitude, allowing precise and optimal setting for various conditions. - Vacuum-assisted energy providing precise, intensive, effective and safe treatment:
Vacuum power suck up treatment area into the applicator chamber enable RF and Cavitation energy only passing through those skin tissues, avoiding unnecessary energy penetration into blood vessels, organs or nerves.
- Multipoalr RF: skin tightening and cellulite reduction.
Multipoalr RF thermal heating promotes an increase in blood circulation, lymphatic drainage, cellular metabolism and collagen depositing. Furthermore, it stimulates fibroblast activity and remodels the extracellular matrix. Multi-poalr RF and Cavitation energy working simultaneously greatly improve treatment efficacy and result. - Integrated ultrasonic transducer: – output highly stable and powerful cavitation energy
– low heat – low noise
– durable and longer service life.

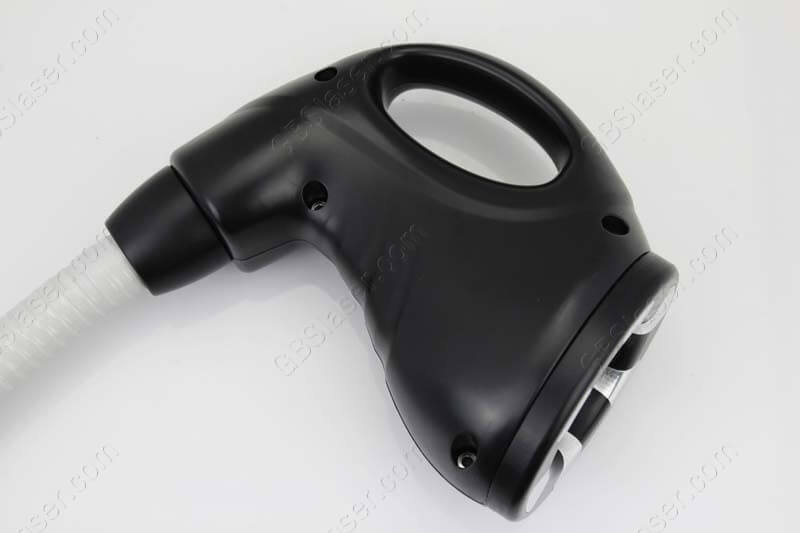

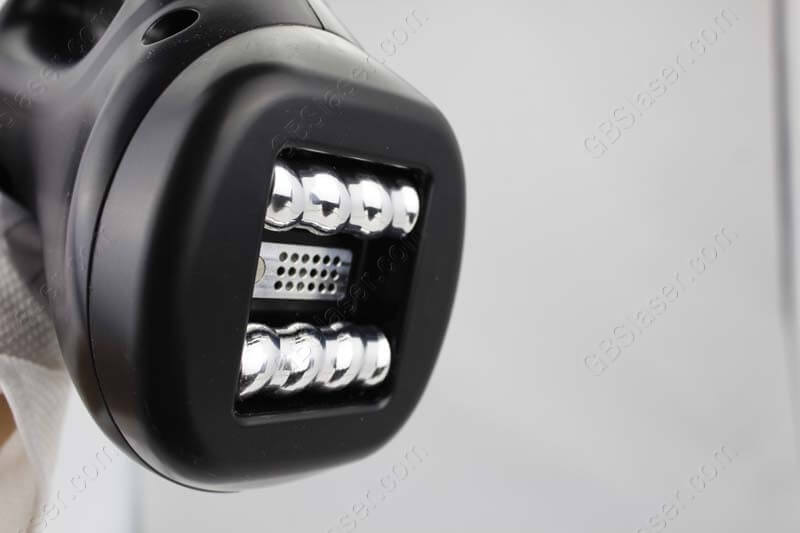

– output highly stable and powerful cavitation energyInnovative Velashape Body Applicator: Vacuum + Motorized Roller+Bipolar RF

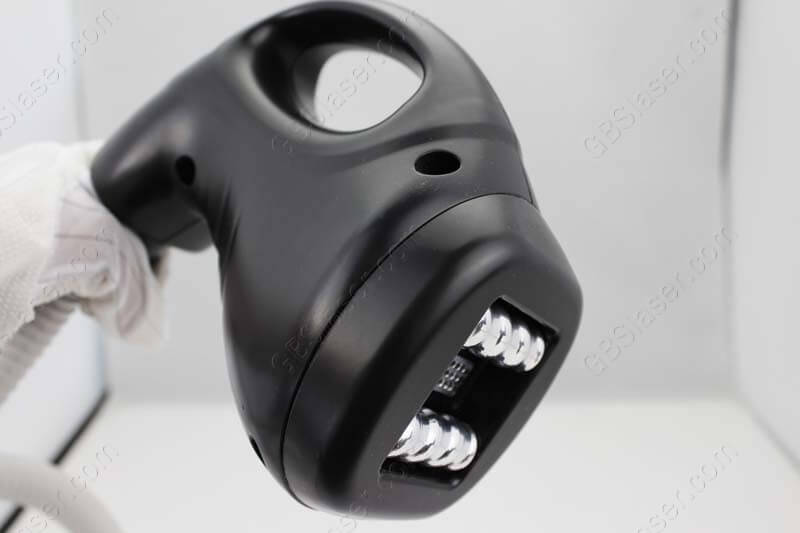

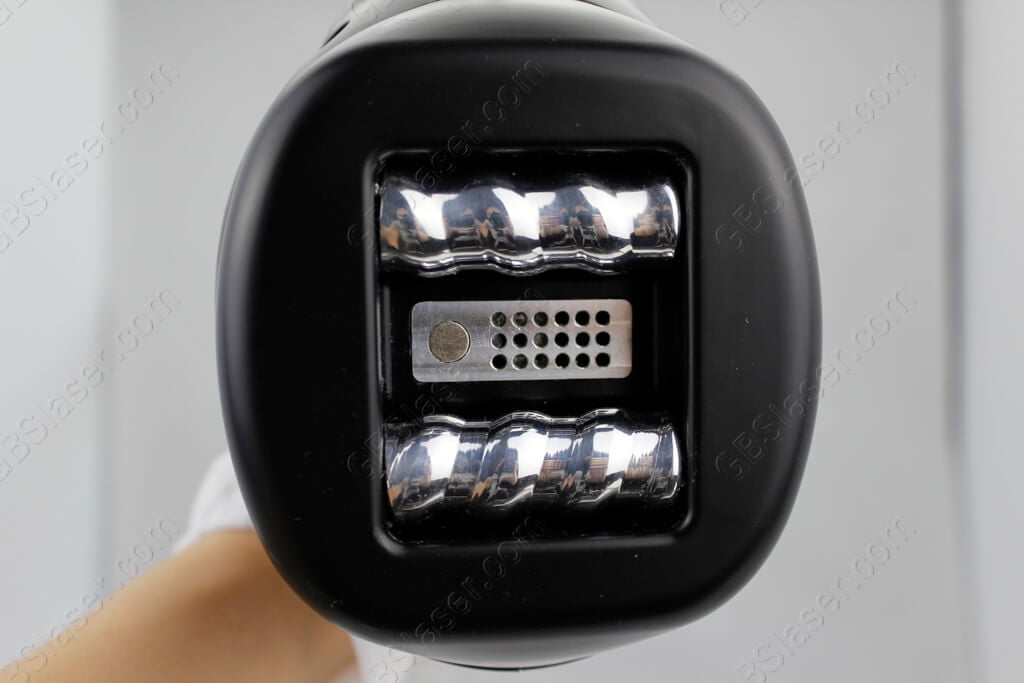

- Mechanical roller RF
The advanced Roller RF delivers thermal energy deep into dermal layer, and involves applying electromagnetic waves to return physiological processes. It offers effective treatment results in cellulite, body sculpting and collagen regeneration.
- Mechanical massage: Vacuum suction + Mechanical roller Mechanical massage perform effective lymphatic draining to increase the elasticity and flexibility of the skin and gives you a great help in eliminating the toxins through the lymphatic system. The combined three technologies provides significant improvements in overall cellulite appearance and skin condition with a long-lasting result。

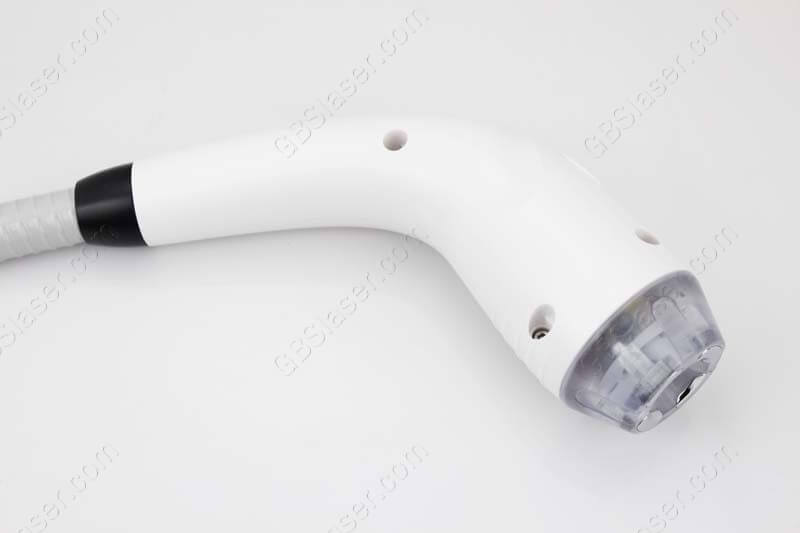

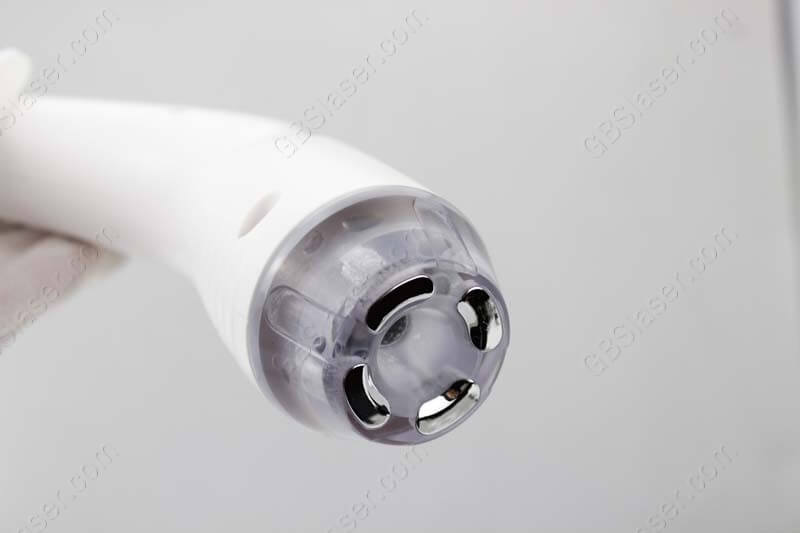

Advanced Facial Applicator： Bipolar RF+ Vacuum suction+ Photon LED
- The Bipolar RF delivers thermal energy deep into derma layer by applying electromagnetic waves to return physiological process. The Bipolar RF also acts on superficial and dermal layers at 5 to 10mm, accelerating metabolism in skin tissues. The design of facial applicator is to meet treatment need of face area and other small body areas. Combines with Vacuum suction, it maximum result of facial lift and skin tightening.
Red light technology has been used by dermatologists and skincare professional for its rejuvenating benefits for many years. Specific wavelengths of red light (650nm) are proven to boost overall cellular energy, increasing our body’s natural production of collagen and elastin and increasing microcirculation. The red light penetrating 8-10mm is suitable for any type of skin; it can reach derma to stimulate fiber cells. Heating can improve blood circulation and collagen albumen hyperplasia to reduce wrinkles and make skin more elastic and smooth. The mild wavelength is suitable for surrounding eyes and forehead.
Red light technology has been used by dermatologists and skincare professional for its rejuvenating benefits for many years. Specific wavelengths of red light (650nm) are proven to boost overall cellular energy, increasing our body’s natural production of collagen and elastin and increasing microcirculation. The red light penetrating 8-10mm is suitable for any type of skin; it can reach derma to stimulate fiber cells. Heating can improve blood circulation and collagen albumen hyperplasia to reduce wrinkles and make skin more elastic and smooth. The mild wavelength is suitable for surrounding eyes and forehead.Ultraslim III introduction video
Ultraslim III treatment demo
Design

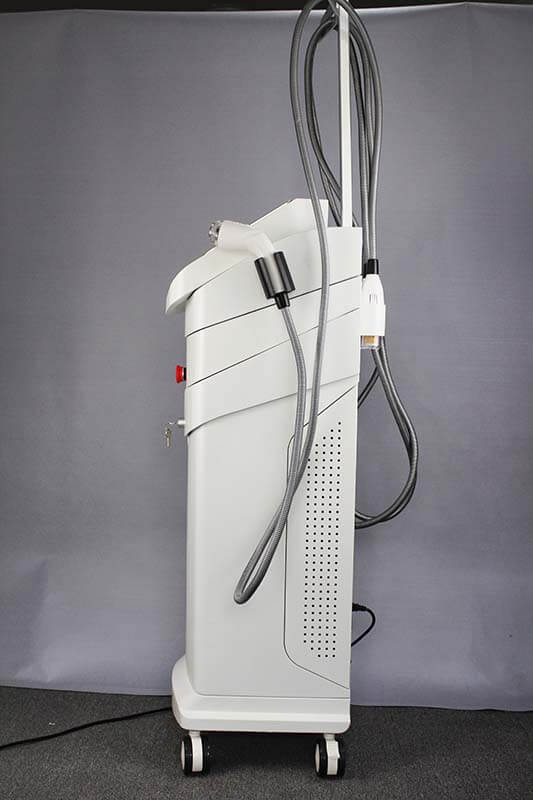

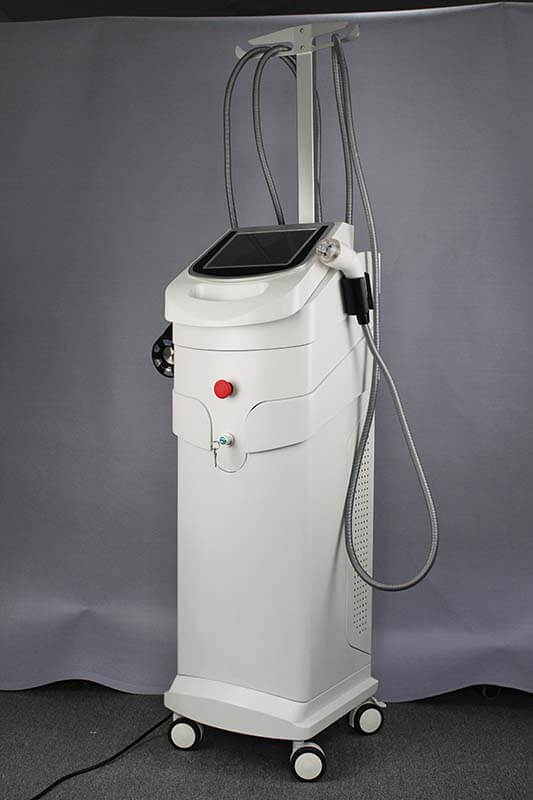

High-end built quality and sate-of-the art design
- State-of-the-art design
- Superior components
- Intuitive and professional software
- Safety power supply system
- Product operation video

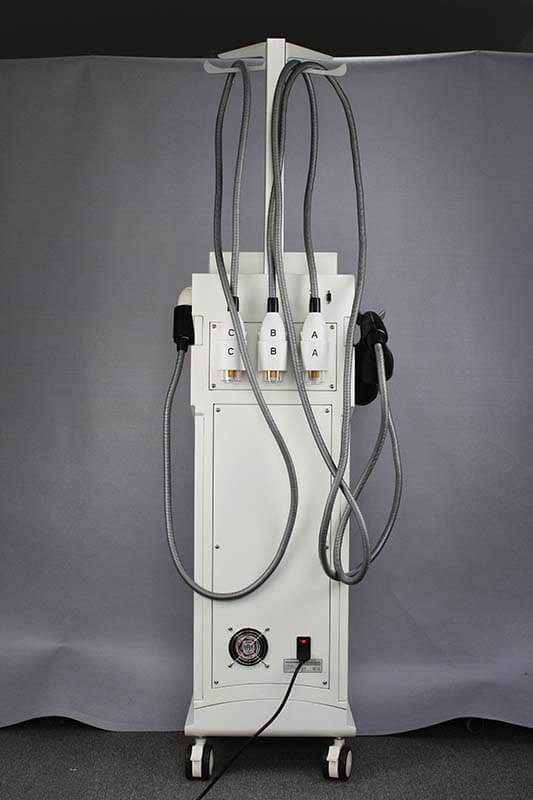

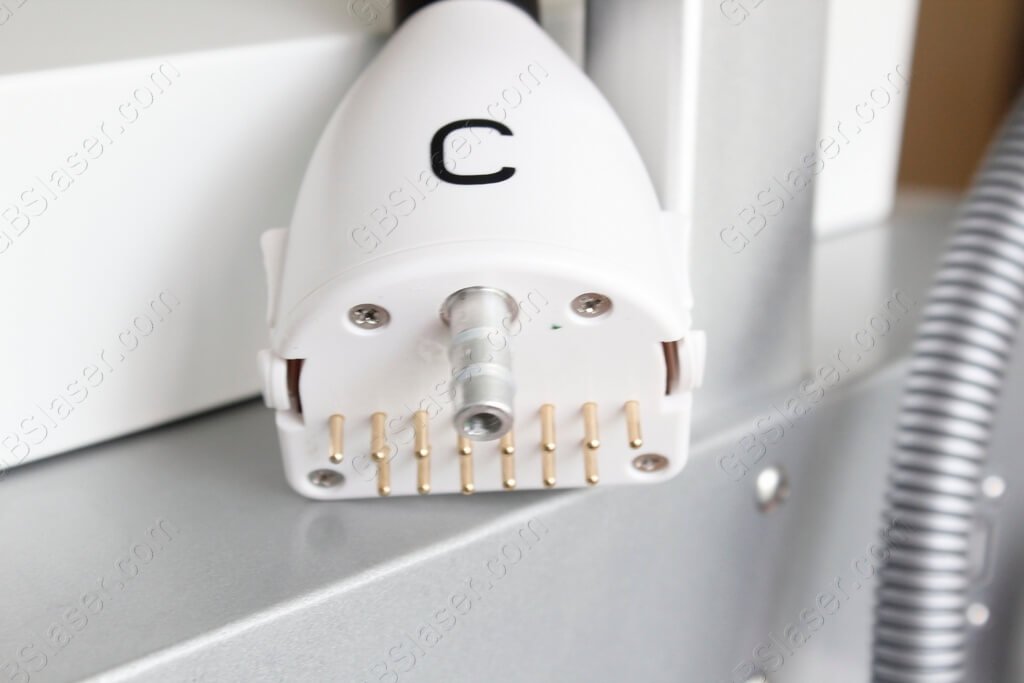

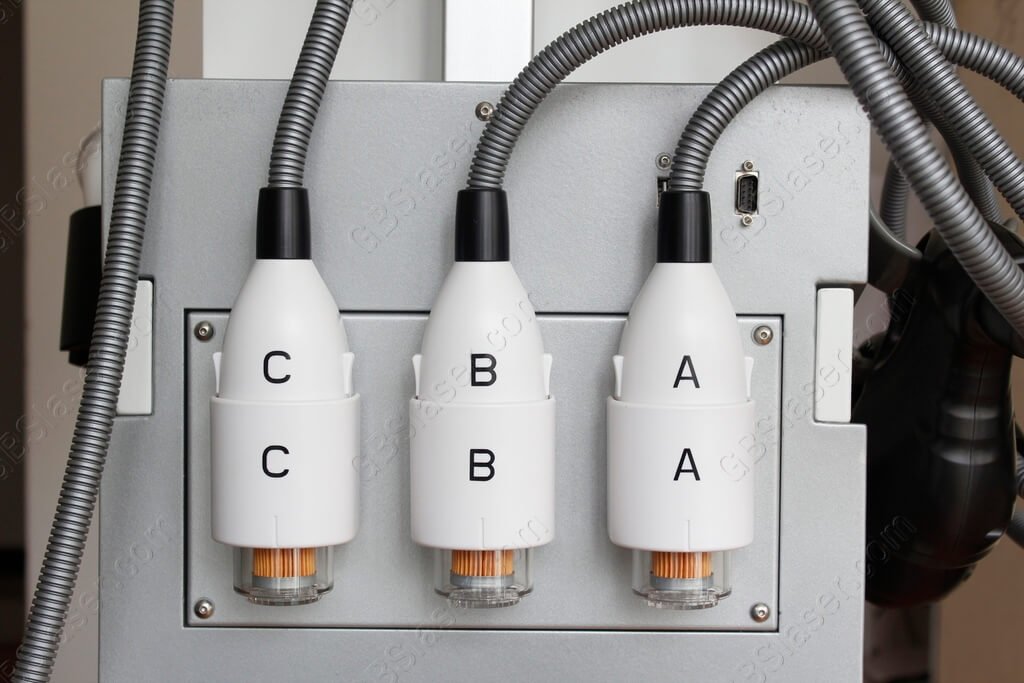

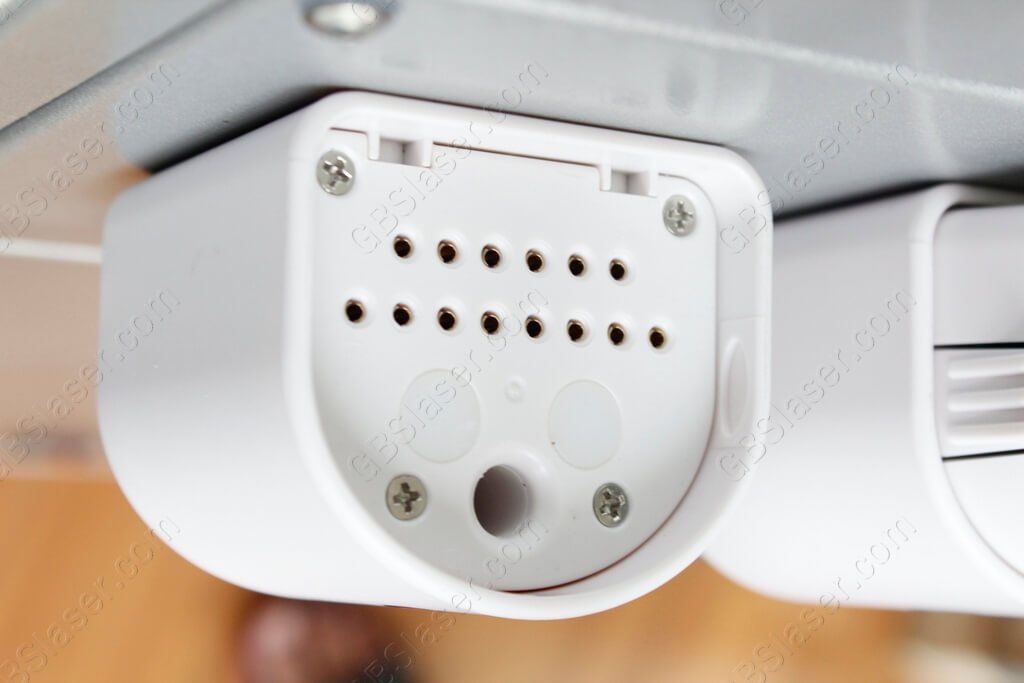

- Quick-plug-in design:
Installing hand piece is never been so easy. It only takes 10 seconds to finish the hand piece installation by simply pluging into the sockets. The integrated connector is easy to install and maintenance. It’s more reliable and durable than other cheap pin-lock-in design. - Ergonomic designed hand pieces
Easy to hold and convenient to operate - Modular design:
Ultraslim III adopts its modular design. Every components of the machine is standardized and can be easily changed. - Full access to all the components:
It’s easy to open up the back cover and access all the components enable easy repair and maintenance.

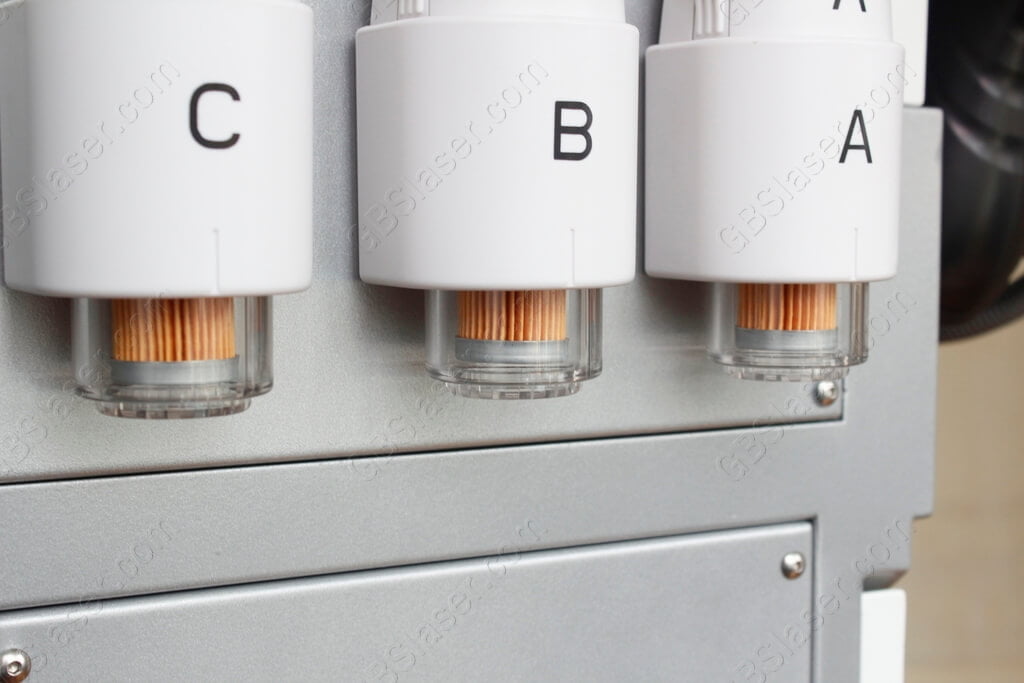

- Auto filter system :
Automated filter system protect the machine from sucking in harmful objects such as liquid products and gel during vacuum operation . Those objects are automatically filtered into bottles , which makes cleaning and maintenance easy to do.
Installing hand piece is never been so easy. It only takes
Easy to hold and convenient to operate

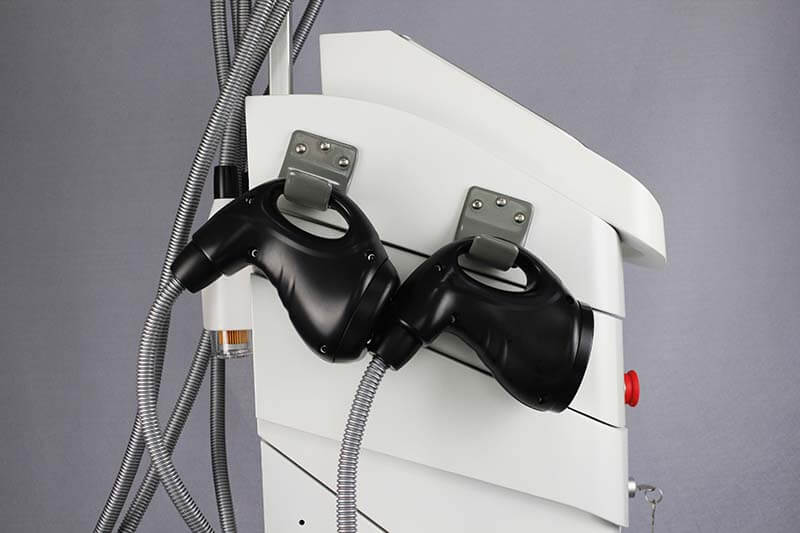

- High-end stainless steel machine case
Durable and luxury appearance. It is much better than cheap PVC plastic and ABS materials.
- Powerful Big vacuum pump
Low noise, strong power, durable and reliable. - Imported Germany hand piece cable

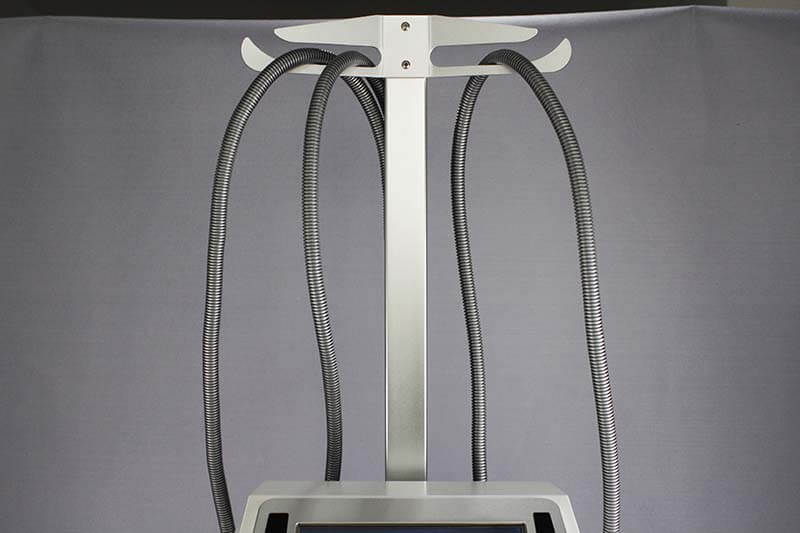

Durable, anti-color-fading and high quality. Comfortable to operation. - Aluminium hand piece holder
- High quality air tube
- Double packages designed for safe oversea shipping

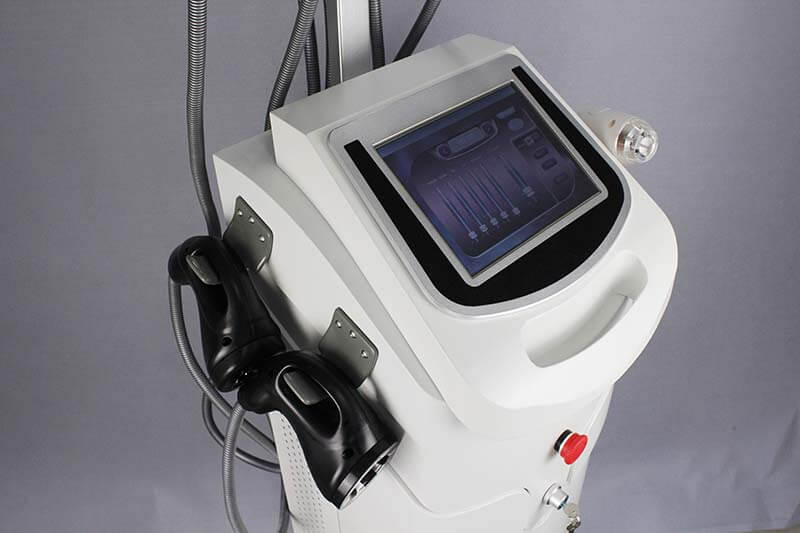

Durable, anti-color-fading and high quality. Comfortable to operation.- Luxury 10 inch touch screen

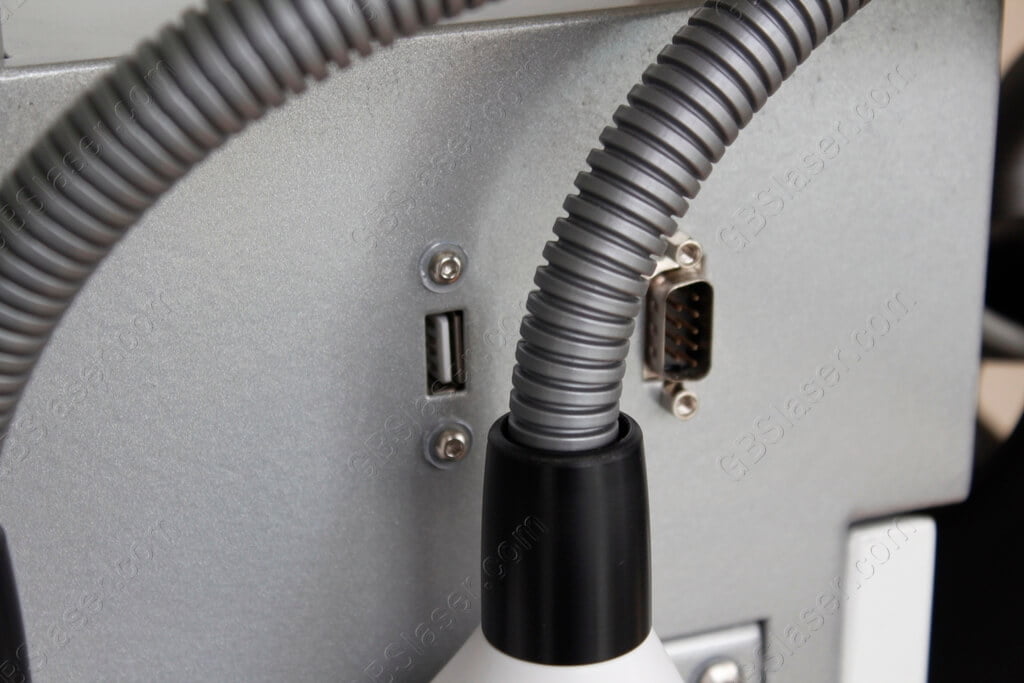

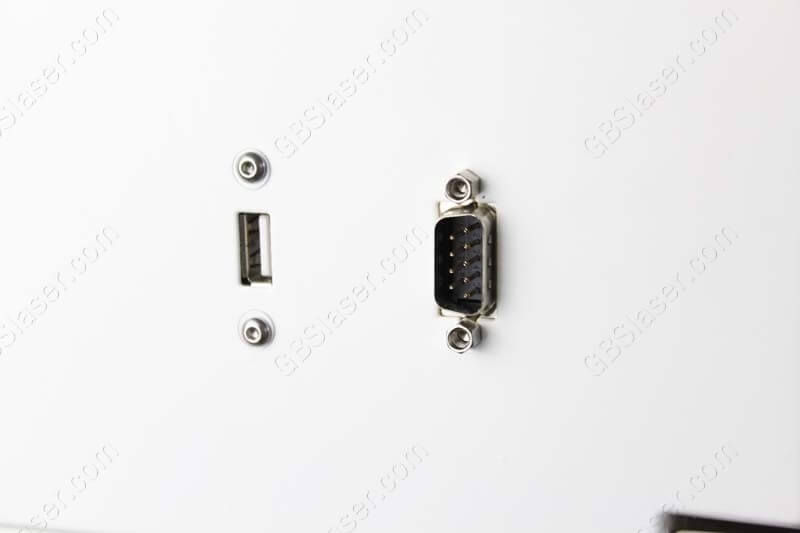

- USB port for future software upgrade .
- Each function can be controlled adjusted independently :
Each applicator integrated multiple functions. Each function can be adjusted and controlled independently. You can turn off or adjust any functions according to the specific situations. It gives operators flexible control of the device providing the optimal treatment experience.
- Full control of cavitation energy: Intensity, power and penetration depth
› The only ultrasonic cavitation device on the market providing fully and accurate control of ultracavitation energy
› Cavitation power: 20 levels to adjust the output power
› Frequency: 10 levels ( 35 Khz to 45Khz); Different frequency has different penetration depth. The adjustable frequency offers more options for different patients conditions.
› Amplitude: 10 levels to adjust the amplitude of ultrasound wave.
The amplitude Is a measure of the degree of change within a medium, caused by the passage of a sound wave, relates to the severity of the disturbance. Adjusting amplitude can increase or reduce the intensity of cavitational effect on the skin tissue offering more precise control.Vacuum suction model: pulsed and continuous: - Various suction options providing the most comfortable and effective treatment experience for different situations.
Ultraslim III has three power control system for the maximum protection.
Main power supply+ machine power supply+ emergency power switch
The design meets medical grade safety requirements to protect from any accidental operation or electricity shortage .
Ultraslim III basic operation demo
Compare
Advantages by Comparison
- Ultraslim III VS Velashape II
- Ultrasound and cavitation
- Real cavitation VS fake cavitation
- Hardware compare
- Energy test video
Ultraslim III and Velashape II main differeence
- Hand pieces: Velashape II has two hand pieces. Ultraslim III has three hand pieces (extra advanced cavitation hand piece)
- RF power: Velashape II Max 60W. Ultraslim III Max 90W
What’s the difference between ultrasound and cavitation?
Ultrasounds are sound waves with frequencies higher than the upper audible limit of human hearing. Ultrasound is not different from ‘normal’ (audible) sound in its physical properties, only in that humans cannot hear it. Ultrasound is used in many different fields such as Ultrasound imaging and cleaning . In aesthetic field, ultrasound is used for skin rejuvenation, skin lifting and fat reduction.
Cavitation is the formation of vapour cavities in a liquid – i.e. small liquid-cavitation-free zones (“bubbles” or “voids”) – that are the consequence of cavitational forces acting upon the cavitational liquid. It usually occurs when a liquid is subjected to rapid changes of pressure that cause the formation of cavities where the pressure is relatively low. When subjected to higher pressure, the voids implode and can generate an intense shockwave. The shock waves formed by collapse of the voids are strong enough to cause significant damage to objects.
Ultrasound waves in a specific range(＜1MHz) are able to cause the so called “cavitation” effect, especially from 20-100KHz. Ultrasonic cavitation slimming technology is a non-invasive technology based on ultrasonic waves which generates empty micro bubbles in the liquid situated in the interior of the adipose tissue. Its repeated action causes the accumulation of these micro bubbles, which causes the fat cells to implode and collapse In short, cavitation is the water micro bubble phenomenon generated by ultrasound waves. Only specific ultrasound frequency can cause this cavitation effect.
Cavitation fat reduction is based on by the explosion of empty micro bubbles rather than thermal heating. Basically, cavitation effect doesn’t generate heat. The treatment is more gentle and invasive.
Noted: simple ultrasound machines with 1Mhz, 3Mhz or 5Mhz are unable to cause cavitation force and ineffective for fat reduction.
In recent years, ultrasonic cavitation is becoming the most widely used technology for fat reduction treatment in beauty salons. With more and more cavitation machines in the market, we find that there are lots of fake cavitation machines. These machines only use simple ultrasound technology which cannot create cavitational effect and has no result for body slimming. Please be awared when you are shopping for a real effective cavitation machine.
How to tell he real cavitation from simple fake ultrasound device?
Drop water on the ultrasound transducers and observer the water reaction when the ultrasound is working. The real cavitation probe causes water splash rather than water mist.
The water splash is caused by the high pressure generated by exploding of empty micro bubbles. Only real cavitation can cause such effect. Other simple ultrasound cause water vaporization rather than splash, which is based on the theory of resonance of high frequency ultrasound. his effect is normally performed by regular 3MHZ ultrasonic beauty device. Many fake cavitation machines use simple 3MHZ ultrasound to produce a strong mist phenomenon to deceive consumers.
You can see the pictures of true cavitation effect on water here.
Inner hardware comparison between Ultraslim III and portable cavitation machine in the market.
Ultraslim III simple energy test video
Application
- Cellulite reduction
- Body contouring
- Weight loss
- Deep fat blasting
- Skin tightening and lifting
- Face lifting
- General reduction of waist, abdomen & buttock
- Promote metabolism and lymphatic drainage
- Collagen stimulation and generation
Specification
| Ultraslim III | |
|---|---|
| Power Supply | AC220V±10%, 50Hz; AC110V±10%, 60Hz |
| Display | 10 inch LCD Touch Screen |
| Max Power Consumption | 800W |
| Hand piece | 1 piece of cavitation applicator: Cavitation+ Multi-polar RF+Vacuum 1 piece of Body applicator: Bipolar RF + Vacuum + Mechanical roller 1 piece of Facial applicator: Multi-polar RF +Vacuum + LED Photon |
| Cavitation applicator size | 6 cm (diameter) |
| Body applicator size | 5×4cm |
| Facial applciator size | 2.5 cm (diameter) |
| Radio Frequency | 1MHz |
| RF power | 90W(Max) |
| Negative Pressure | -80KPa |
| Vacuum suction model: | Pulsed/ Continuous. |
| LED Photon | 650nm |
| Cavitation power | 100W(Max) |
| Cavitation Frequency | 35-45K Hz |
| Roller speed | 0-50rpm |
| Hand piece cable | 250 cm |
| Machine Size | 40cm×40cm×120cm |
| Gross Weight | 62Kg |
| OEM Service | MOQ over 5pcs |
Result
fat removal
body contouring
wrinkle reduction
Product FAQ
What's Elos technology ?
Elos is a revolutionary technology invented by Syneron. elōs enables a safer and deeper penetrating combination of multiple synergistic energies. With multiple energy working simultaneously, it provides more comfortable, safer treatments and enhanced clinical efficacy.
Is cavitation fat reduction treatment safe?
Yes, cavitation treatments is non-invasive and non-surgical. Cavitation technology has been studied and used for over 30 years for many biomedical purposes. The technology has been FDA approved in USA. The treatment is painless and has no downtime.
Who is candidate for the Ultraslim III procedure?
Ultraslim treatment is a very suitable for people with fat. It is not a suitable treatment for those who have less than 1cm depth of fat in the area to be treated. In addition, it is not suitable for those who are pregnant, have a blood clotting disorder, a history of cancer and related conditions or cardiovascular devices fitted eg. pacemaker.
Will my skin sag after the fat has gone?
As only a small area of fat is being treated, the amount of fat being destroyed and liquefied will not be enough to create a sagging of the skin. There is also some evidence to suggest that the heat of the treatment itself does cause an element of skin tightening.
What happens to the fat in the treated area?
The destroyed fat cells at the treated area are reabsorbed by the body over the following 12 weeks. The dead fatty cells are naturally eliminated from the body, permanently removing the damaged fat cells from the body, leaving a slimmer waistline.
How quickly will I see results?
It is not unusual for the results to take up to 12 weeks to be fully seen and the treated area will likely go through various changes in texture and feel during that time. The area can often feel ‘doughy’ or ‘jelly like’ and many patients initially experience an increase in urination. All of these changes are quite normal and will eventually settle down.
How long do the results last?
As long as additional weight is not gained, the fat cells will not return to the treated area. The treatment will not prevent new fat cells from developing and the patient is encouraged to continue with a balance of healthy eating and exercise to maintain the results.
Why do patients hear "tinnitus sound" during ultracvaitation treatment?
Although our cavitation technology has greatly reduced the tinnitus sound level, it’s very hard to completely reduce it because this is normal for all ultrasound with such low frequency. If patients find the tinnitus sound uncomfortable. You can improve the situation with the following tips:
- Don’t touch the probe with water. If there is water on the probe during treatment, it will cause loud noise and also heat up very quickly.
- Use pure ultrasound gel or high quality slimming gel.
- Don’t move the probe too quickly. Move it slowly. Place the probe firmly on the treated area. Avoid probe rubbing on the skin frequently.
- Listening to music with headphone will ease the feeling .
Can we use cavitation for facial treatment ?
No, you cannot. We strongly against using cavitation on face and neck area. Cavitation energy can reach very deep. Face or neck has very thin skin and very little fat tissues. The energy may reach organ /bones and cause damage on those areas. Some other irresponsible companies may advertise their cavitation can treat face and neck. The fact is that their technology is not actual cavitation but only simple 1Mhz or 3Mhz ultrasound. Such ultrasound don’t have any effective result for tightening or fat reduction. If you want to perform facial treatment, please consider RF technology as is perfectly safe for face.
How many centimeters can I reduce from my circumference?
In clinical studies, patients report an average reduction of 1 – 3 centimeters for 1 treatment. Still, results can be highly individualized varying from subtle to dramatic, depending upon the physical state of the patient prior to treatment and the patient’s adherence to a healthy lifestyle. Patients can lost 0.5 inch to 3 inches post treatment, however it is not unreasonable to exceed even these results.
Are there any side effects?
Short term effects can include mild bruising or redness. There is also a risk for mild, superficial burns in a very small percentage of the population, but these are exceedingly rare. If you have any concerns, please be sure to ask your therapist during your free consultation.
Which gel is recommended for RF and cavitation treatment?
We advise you apply Ultrasound Gel or Cooling gel (used in hospitals and clinics) for cavitation liposuction treatment. It’s easy to buy such products in your local store. The gel is to help smooth operation and better energy conduction. For RF treatment, you can also use ultrasound gel or cooling gel. Some customer prefer to use oil or creams for RF treatment. Cream is also a great choice. But we don’t recommend oil for RF. Because oil has very high resistance which is not good for RF power transmittance. As those are liquid product, we don’t supply them directly. We advise you purchase from your local market. Please remember to clean those cosmetic products or gels after treatment. Otherwise, it may be harmful for the machine life span.
Do you provide private label/OEM service?
Yes, we have done many successful OEM/ODM service around the world. We can print your logo on the device free of charge. However, such service requires MOQ over 5pcs. Please contact our customer support for more details.
